Medusa accessories: EasyFlash
We also sell all the bits and pieces of the EasyFlash line separately. We even have some extra models and tools to help you get the most out of your CMIzapper Medusa.
We do assume you know what you are doing. If not please do not order as you will be struggling to get things to work. We do give support on our products but we do not feel it is our task to explain the whole universe to every one.
We ship everything registered (signed for) and priority. Tracking is available on all our shipments.
Loose Easy Flash bits and pieces
A4052 EasyFlash adapter Hirose-30 (no cables)
Green 30-pin for MacBook air 2012-2014 / MacBook pro 15" A1398 Late 2013 till 2014 / MacBook pro 13" A1425 & A1502 till 2014. The A4052 does pass 3v3 from JST to the motherboard.
A4056 EasyFlash adapter Molex-30 (no cables)
Blue 30-pin with 30-pin Molex connector. Adds support for:
MacBook air 11-Inch A1370 (Late 2010) 820-2796
MacBook air 13-Inch A1304 (Late 2008 / Mid 2009) 820-2375
MacBook air 13-Inch A1369 (Late 2010) 820-2838
MacBook air 13-Inch A1369 (Mid 2011) 820-3023
MacBook pro 'retina' 15-Inch A1398 (2012 and Early 2013) 820-3332 and 820-3552
45 euro
45 euro
45 euro
A4167 EasyFlash adapter Hirose-12 Mac Book 12-Inch A1534 (no cables)
12-pin Hirose connector. Special model to reach connector in Mac Book A1534 without having to open the Mac all the way.
Easy Flash Cable (EF-EF 20cm)
Cable (black). 8-pin EF connector to 8-pin EF connector.
10 euro

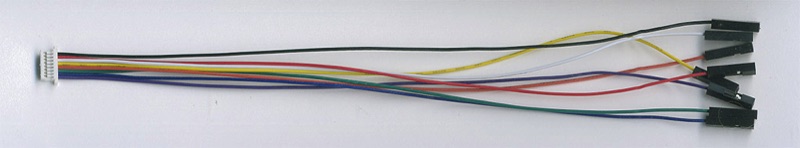

EasyFlash Cable (EF-Dupont style seperate female 20cm)
Cable (wires all different colours). 8-pin EF connector to 8 single female Dupont style connector.
10 euro
Easy Flash Testing board (Contains ROM chip and Hirose-12 connector like on motherboard)
PCB (red 5cm x 5cm) with ROM chip and 8-pin EF connector. Great for practicing or testing different programmers.
35 euro
Easy Flash Testing board (Contains ROM chip and Hirose-30 connector like on motherboard)
PCB (green 5cm x 5cm) with ROM chip and 8-pin EF connector. Great for practicing or testing different programmers.
35 euro
A4xxx BusPirate 4 to Easy Flash adapter (no cables)
PCB (red, same size as BusPirate 4). Board that plugs into BusPirate 4 with 8-pin EF connector.
35 euro
Easy Flash Cable (EF-EF 30cm)
Cable (blue). 8-pin EF connector to 8-pin EF connector.
10 euro
A4064 ROM chip Solder Board (to use loose ROM chips with Medusa)
PCB (blue 5cm x 5cm) with space to solder ROM chip and 8-pin EF connector. Supports SOP8 (SOIC8), WSON 6x6 and WSON 5x6 SPI ROM chips.
This board allows you to read and write loose ROM chips. SOP8/SOIC and WSON 6x8mm / 5x6mm chips are supported. Only have one chip soldered onto this board at a time. You can read or write the ROM by connecting this Solder Board to the Medusa via the JST connector. If you want you can add pull-up resistors (10kΩ) for the Hold and WP pins. For use with Medusa this is not necessary. Two places for each model in case you damage one…
20 euro
A4066 EasyFlash adapter Hirose-12 Mac Pro Trash-Can (no cables)
12-pin Hirose connector. Special model to reach connector in Mac Pro A1481 (Late 2013)
To place this EasyFlash adapter you will have to take off the round outer case as well as the bottom cover of the Mac Pro. The side with the black connector will plug in the Mac. The side with the white connector and the LEDs sticks out from the side of the Mac. By holding a magnet to the side of the Mac you can fool it into thinking the round cover is in place so you can turn on the Mac and use the Medusa on this Mac.
A4043 DIL to EasyFlash adapter (no cables)
Red PCB. 8-pin DIL to 8-pin EF connector.
15 euro
50 euro
50 euro
A4140 EasyFlash adapter Hirose-12 (no cables)
Yellow PCB. 12-pin Hirose connector. Old style adapter, does not try to manipulate the Mac.
Same as A4040 except that the A4140 does pass 3v3 from JST to Hirose connector.
45 euro
A4160 Magic EasyFlash adapter Hirose-12 (no cables)
Red PCB. 12-pin Hirose connector. New style adapter, tries to manipulate the Mac to keep it quiet.
Same as A4060 except that the A4140 does pass 3v3 from JST to Hirose connector.
45 euro
A4163 Magic EasyFlash adapter Hirose-12 (no cables)
Same as A4063 except that the A4163 does pass 3v3 from JST to Hirose connector
20 euro
A4070 Solder Board for WSON 3x4 and 5x6
PCB (blue 5cm x 5cm) with space to solder ROM chip and 8-pin EF connector. Supports WSON 3x4 and WSON 5x6 SPI ROM chips.
This board allows you to read and write loose ROM chips. Only have one chip soldered onto this board at a time. You can read or write the ROM by connecting this Solder Board to the Medusa via the JST connector. If you want you can add pull-up resistors (10kΩ) for the Hold and WP pins. For use with Medusa this is not necessary. Many places for each model in case you damage one…
20 euro
(10 pieces)
SPI connector Hirose-12
To read and write the ROM on modern iMacs you can solder the SPI connector in place. Apple does not mount the SPI connector in 99% of the cases but if you mount it yourself it works just fine. If the iMac has a SOIC ROM chip then you are probably quicker off using a Medusa- with a Pomona clip. If the iMac has a WSON ROM chip then you can mount this SPI connector and then use the Medusa with an EasyFlash adapter (A4140 or 4160).
Although this connector has 16 pins it is actually the 12 pin version. This is because the four corner pins are only for mechanical stability and do not match up with any contacts on the connector it mates with.
40 euro
(30 pieces)
